Publishing an artifact

A figure in a paper can carry a URL. Someone who opens it (a referee, a replicator, you in eighteen months) sees the result, the code that produced it, and the code and environment of every step behind it. No account, no install, no notebook.

strata artifact publish nb_paper_cell_c2_var___display__0 --title "Figure 3" \
  --artifact-dir ./paper/.strata/artifacts

nb_paper_cell_c2_var___display__0@v=1 is public at /p/ocxQj-toxGttZYyRl-Zf9...
Published into ~/.strata/artifacts (the store your server serves).
Copied 2 artifacts across so the link resolves.

Anyone with that link can read the artifact, its source, and the
source and environment of every step behind it. That is the point,
and it is worth knowing before sending the link:
  - nb_paper_cell_c2_var___display__0@v=1
  - nb_paper_cell_c1_var_rows@v=1

Withdraw it with: strata artifact unpublish ocxQj-toxGttZYyRl-Zf9...

The link starts with the server's STRATA_PUBLIC_BASE_URL and STRATA_PUBLIC_BASE_PATH when they are set, or with --to-url when publishing to another store.

Every cell output is already an artifact, and a plot is no exception: it is stored under its own id with a provenance hash binding it to its inputs, its source, and the environment it ran in. Publishing does not create any of that. It grants read access to one version of it.

Where the artifact ends up

A notebook writes its cell outputs to its own .strata/artifacts; the server serves whatever artifact_dir it was started with, ~/.strata/artifacts by default. Publishing therefore copies the artifact, and every step behind it since the page shows their code, into the store the server serves, and mints the token there. Point --artifact-dir at the notebook's .strata/artifacts, as above; without it the command reads the server's store, which does not hold the notebook's outputs until something copies them there. The command says how many it moved:

Copied 4 artifacts across so the link resolves.

The copies keep their original ids, versions, provenance hashes, authors and timestamps. An artifact that moves into a served store has to keep saying who computed it and when; publishing is not a re-computation and must not read like one.

Reading and publishing are separate arguments, because they are separate questions:

Argument	Means
--artifact-dir	the store to read the artifact from, as in every other subcommand
--into DIR	the store to publish into
--to URL	a Strata server to publish to over HTTP (see below)
--here	publish into the store named by --artifact-dir

--into defaults to the store your server serves, which is what makes a link resolve. Whichever applies, the destination is printed:

Published into ~/.strata/artifacts (the store your server serves).
Copied 4 artifacts across so the link resolves.

--header 'Name: value' (repeatable) adds a header for --to beyond the STRATA_STORE_TOKEN bearer, and --max-depth (default 10) bounds how far the chain is listed.

That line is not conditional. A caller who is never told where a grant lives cannot tell a working link from one their own server will never resolve, and the silent case used to be exactly the one where it already matched.

What the page claims, and what it does not

This matters more here than in most features, because the reader is being asked to trust what they see.

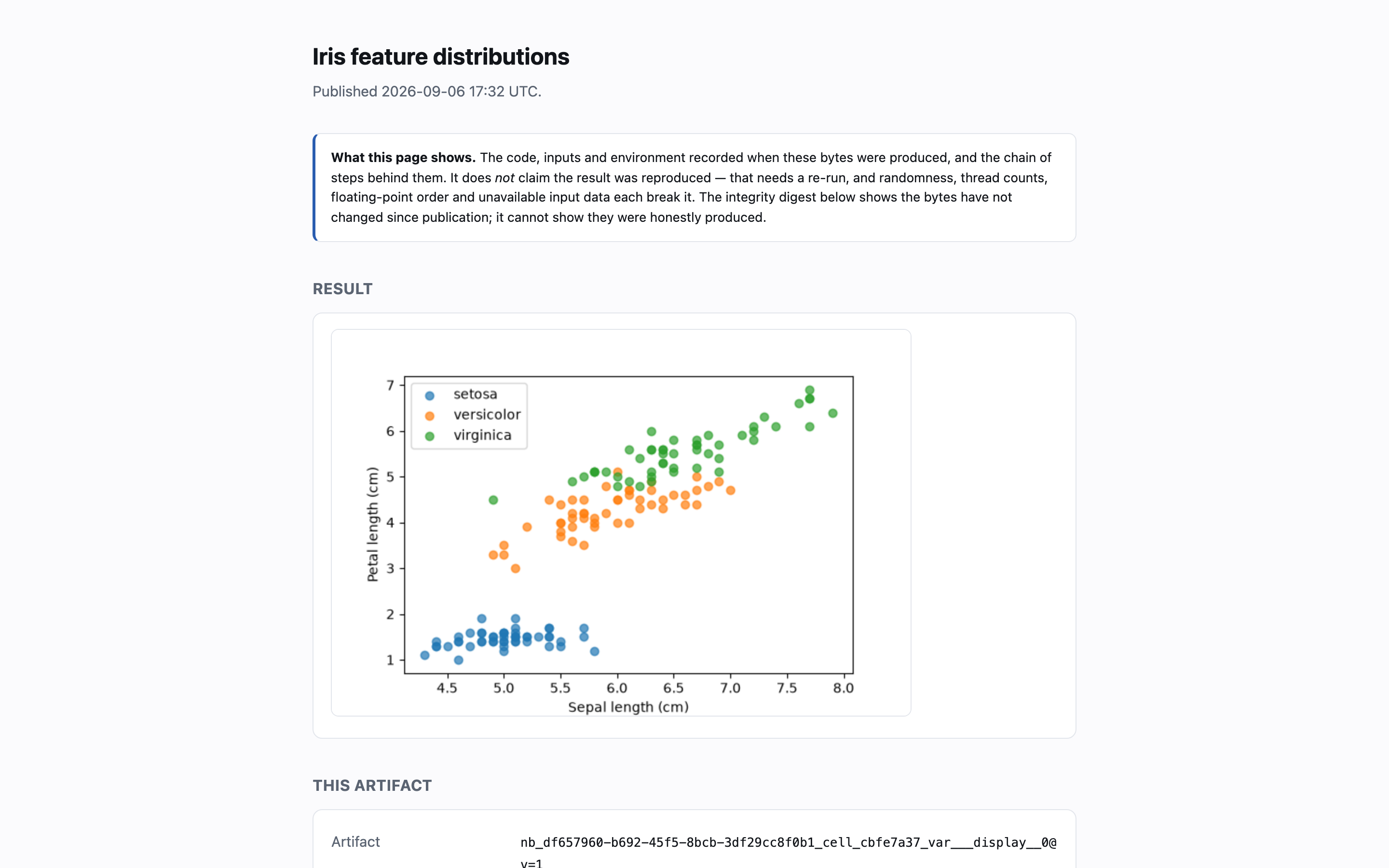

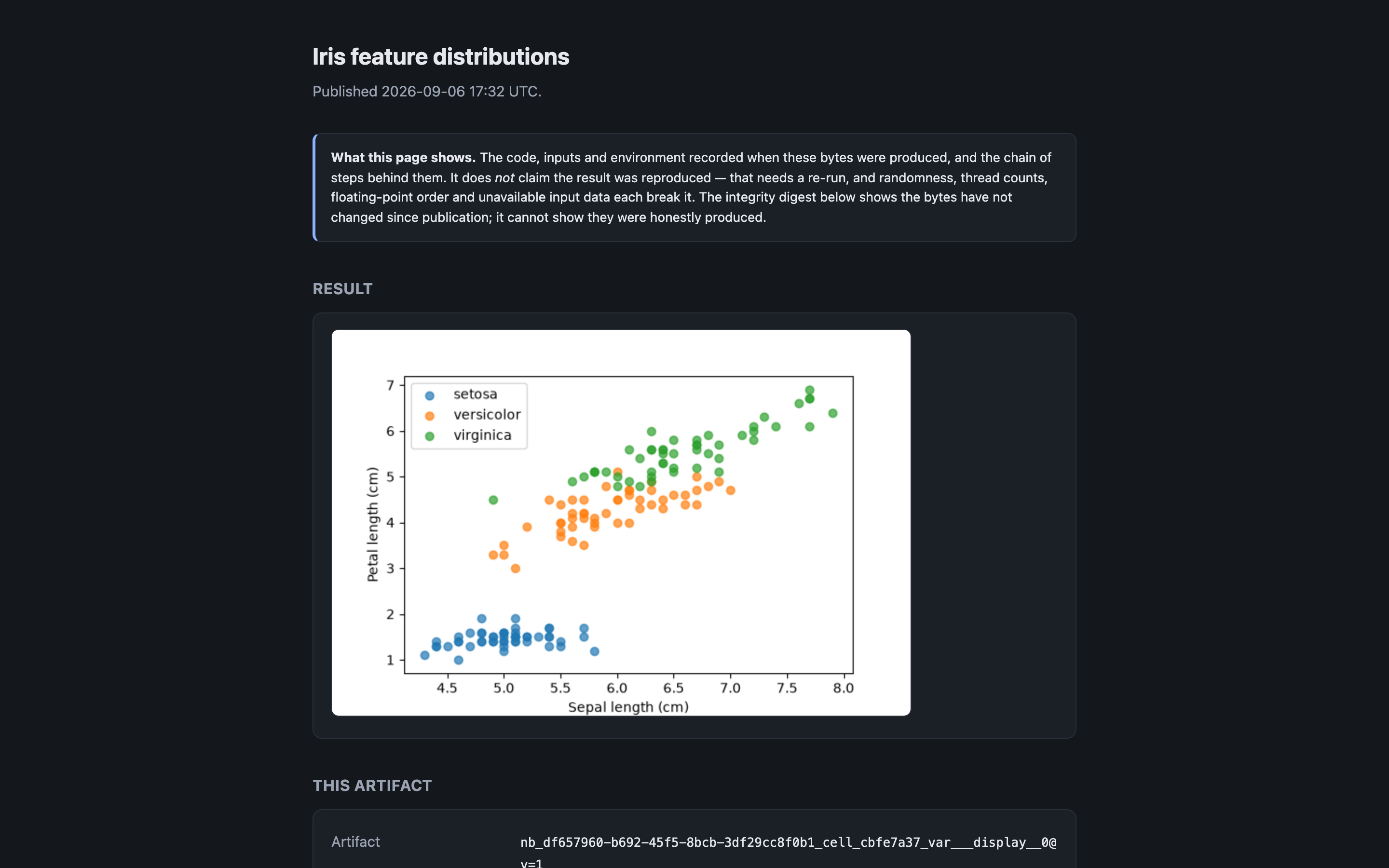

Transparency. The page shows the code, the inputs, the environment and the author as recorded when the bytes were produced, not as they look now. A cell edited after the run does not change what its artifact reports.

Integrity. A digest of the bytes is recorded at publication, and /p/<token>/verify re-reads them and compares. That proves the bytes have not changed since they were published. It does not prove they were honestly produced in the first place: nothing a server can compute about its own storage could establish that.

Reproduction is not claimed. Re-running the computation and getting the same result is the strongest thing anyone could want, and it is not something Strata asserts. Random seeds, thread counts, floating-point accumulation order and unavailable input data each break it on their own. So there is no green check anywhere on the page: in a research context a checkmark is read as "someone reproduced this", and a badge that can be wrong is worse than no badge. The page says what it checked, in words. Re-running is left to the reader; the source and environment shown are what it takes.

Publishing exposes the chain

This is the feature working as intended, and it is the thing to think about before sending a link. The page shows the source and environment of every upstream step, because a plot whose ancestry is hidden answers nothing.

Upstream cell source can name private dataset paths, internal table names, or credential names. So publishing is explicit, one artifact version at a time, never a switch on a whole notebook, and the CLI prints the full list of steps the link will expose before you use it.

Upstream data is never served. The page describes the steps; only the published artifact's own bytes are downloadable, at /p/<token>/data.

Those bytes are served as data, never as a page. A PNG, Arrow, JSON or Markdown artifact is served under its own type; any other declared type (HTML or SVG, for instance, which a writer can set freely) downloads as application/octet-stream. Every response carries X-Content-Type-Options: nosniff and Content-Security-Policy: sandbox, so nothing published runs script on your server's origin.

Withdrawing

strata artifact unpublish <token>

<token> can also be the publication's id, which GET /v1/publications lists. The store keeps only each token's SHA-256 (its id), so the token, and the link built from it, is shown once: in the answer to the publish that minted it. A version has at most one live publication. Publishing the same version again returns the existing publication without a token; keep the link when it is minted, or unpublish and publish again for a new one.

The link then reports that it was withdrawn, rather than 404ing. A reader chasing a footnote deserves that answer rather than one that reads like a typo. The token is never reissued for other content, so a URL already in print fails closed instead of quietly starting to resolve to something else.

A badge for a README

[![provenance](https://your-strata/p/<token>/badge.svg)](https://your-strata/p/<token>)

It reports the size of the recorded chain (provenance · 4 steps) and links to the page. It says nothing about whether the result is right, and it is deliberately not green: in badge convention green means "passing", and borrowing that would smuggle back the claim the rest of this is careful to avoid.

A withdrawn publication still renders a badge, reading withdrawn. A broken image tells a reader nothing except that something is wrong with the server.

A badge is a pointer, not a revocation mechanism. GitHub proxies badge images through its own cache, so a withdrawal can take a while to show. The page and the bytes stop immediately; the pill in someone's README lags.

The page carries ready-made snippets for the badge, the iframe and the RO-Crate URL, under Putting it somewhere.

Machine-readable provenance

The chain is also published as RO-Crate JSON-LD, which repositories and provenance tooling read directly:

• inline on the page, in a application/ld+json script block;
• at /p/{token}/ro-crate, so a harvester need not scrape the page;
• as ro-crate-metadata.json in an archived bundle, which is what turns a Zenodo deposit from a folder someone can read into something the archive can index.

The graph maps each step to a CreateAction whose instrument is the cell source as SoftwareSourceCode, its object the inputs and its result the output: the shape PROV-O and RO-Crate both expect for "this code, on these inputs, made this".

Upstream steps are CreativeWork entities, not files, and they are not listed under hasPart. Their bytes are deliberately not in the crate, and declaring files that are not there is a claim no validator would catch. An input past the depth limit is still named, as a stub saying the recorded chain stops there, so no reference dangles.

People appear once each. A step run by someone listed as an author points at that author's node (the ORCID when one is given, as a bare id or a link), and an author listed twice is credited once.

A step that read a URL through @fetch names it as an input. On the page it appears under "External inputs" with the digest of the bytes read, when they were retrieved, and when the reading step ran. In the crate it is a File whose @id is the URL, with that sha256 and the retrieval time as sdDatePublished. The digest describes what was read, and the URL may serve something else now. A step stored before retrieval times were recorded shows only when it ran.

A Snowflake or BigQuery cell with # @cache snapshot, published or upstream of what is, shows the moment of the warehouse state it read ("Warehouse state as of") and how long the warehouse keeps that state ("Queryable until"). Until then a reader with access to the warehouse can run the query against the same state; after it, they cannot. A cell stored before the horizon was recorded shows "not recorded".

Embedding it elsewhere

Paste the link into a wiki, CMS or note-taking tool that speaks oEmbed and it unfurls into a card: the figure, what it is, how many steps are behind it, and a link through to the full provenance. Tools that do not, take the iframe directly:

<iframe src="https://your-strata/p/<token>/embed"
        width="480" height="420" frameborder="0"></iframe>

The card is deliberately not a smaller copy of the page. An embed sits in a post where the surrounding text is doing the explaining, so it carries the result and an honest one-line summary, then links out. Abbreviating the caveats into a card would produce exactly the badge this feature avoids.

The card is framable from any origin, because being embeddable is the whole point of it. That applies to /p/{token}/embed and nothing else: the full page keeps the default frame-ancestors 'self', and embed_frame_ancestors still governs the notebook app view.

Behind a reverse proxy, set STRATA_PUBLIC_BASE_URL to the address readers use. The URLs in an embed are consumed by someone else's page, and a server that only knows its internal origin will advertise an oEmbed endpoint nobody can reach and reject the public link a wiki pastes. Unset, the request's own origin is used, which is right for a directly-reachable server. A proxy that serves Strata under a path also needs STRATA_PUBLIC_BASE_PATH (Serving under a path); every link on the page and in the card then carries it.

Archiving: the copy that needs no server

A hosted link resolves for as long as your server does. A URL printed in a paper outlives most servers, so there is a second form:

strata artifact archive nb_paper_cell_c2_var___display__0 \
  --artifact-dir ./paper/.strata/artifacts \
  --to ./figure3-bundle --title "Figure 3" --author "F. Li"

figure3-bundle/
├── index.html              the page: opens in a browser, no server, no external requests
├── artifact.png            the bytes
├── manifest.json           the same record, machine-readable
├── ro-crate-metadata.json  the chain as RO-Crate
└── README.md               what it is and how to check it

--force writes into a non-empty directory (which may leave a stale payload beside the new one); --max-depth (default 10) bounds how far the chain is walked. With --token it defaults to 25, the depth the hosted page and its archive walk.

A tabular artifact's bytes are Arrow IPC (artifact.arrow), and the bundle also carries artifact.parquet, the same rows in a format a data repository indexes. The manifest's digest covers the Arrow file; the Parquet file carries its own, in the manifest's additional_files and as a second File in the RO-Crate, so a repository reading the crate sees both. A table whose Arrow file is over 128 MiB is archived without the Parquet copy, since converting it holds the whole table in memory; neither the manifest nor the crate then lists one. The limit is fixed, so it never makes one publication's archive differ between builds.

Whichever file a reader kept, the server can say whether it is this publication's. GET /p/<token>/verify?sha256=<digest of the file> answers with file naming it (artifact.arrow or artifact.parquet, or null for a file from elsewhere) and matches true only when it names one and the stored bytes are unchanged. The Parquet digest is the one in the archive the server serves.

Deposit the directory with Zenodo or OSF and cite the DOI. The archive's retention promise then stands behind the link instead of yours.

A published artifact serves the same bundle as a zip:

curl -O -J https://your-server/p/<token>/archive.zip

Same files, same code: the route and the command build the bundle from one implementation, because two implementations of a set of files that describe each other would drift and neither would stop producing a bundle. The response carries a Content-Digest of the zip, and the zip is the same bytes on every request, so a digest you record at deposit time can be checked against a later fetch. The server builds it once and keeps it under publication-archives/ in the artifact directory: later requests send that file, editing the publication's authors or identifiers rebuilds it, and withdrawing deletes it.

To build that zip from the store directly, name the publication rather than the artifact. The bundle then carries the publication's own record, with the authors and identifiers the hosted page shows, and a --to ending in .zip writes the file the route serves, byte for byte:

strata artifact archive --token <token> --to ./figure3.zip

--token also takes the publication's id, which GET /v1/publications lists, since the raw token is shown only when the link is minted.

A withdrawn publication refuses here as it does for the bytes: the page still resolves and says "withdrawn", since a reader chasing a footnote deserves that answer, but handing over the archive anyway would undo the withdrawal.

It needs no credentials, like the page, and contains nothing the page does not already show: the artifact's own bytes and the chain as rendered. Upstream bytes stay where they are.

The page is the same document as the hosted one, with one difference: it points at the file beside it rather than at routes, and it tells the reader how to check the bytes themselves:

sha256sum artifact.png
# 6803c74b80937b56ed0eb28f86995fbbe9559167ac6ce089525a1615afb0c6ca

Archiving is not publishing. It grants nobody access to a running server and mints no link. It writes files you choose who to hand to.

Crediting an author

The page carries two different facts, and they come from different places.

Who published or archived it is the byline under the title. --author sets it on either command; in service mode a publish through the API uses the authenticated principal instead. Omit it and there is simply no byline.

Who computed it is the Computed by row, and it comes from the artifact itself, recorded when the cell ran, not when you published. On a server that authenticates its callers (service mode) it is the member who ran the cell. A personal server has no authenticated identity to record, so there the row usually reads "not recorded". --author does not change it: crediting yourself for publishing a result is not the same as the store attesting who produced it, and the page keeps them apart deliberately.

Who wrote the work is a third thing, and a list rather than a string: authors have an order, an affiliation, and an ORCID that distinguishes one researcher from another. Pass them when publishing over HTTP:

POST /v1/artifacts/nb_paper_cell_c2_var___display__0/v/1/publish
{
  "title": "Figure 3",
  "authors": [
    {"name": "F. Li", "orcid": "0000-0002-1825-0097", "affiliation": "Somewhere"},
    {"name": "B. Second"}
  ]
}

The byline then lists them in the order given, each ORCID as a link. Publishing without authors leaves published_by as the byline, so nothing published before this changes meaning.

Citing it: DOIs and other identifiers

A DOI is registered against a deposit that already has to be reachable, so it almost always arrives after the token does:

PATCH /v1/publications/{token}
{"external_ids": [{"scheme": "doi", "value": "10.5281/zenodo.1234567"}]}

Schemes are doi, zenodo, arxiv and url; anything else is refused, since a record that accepted arbitrary scheme names would produce citation lines nobody can follow. The page grows a "Cite as" line of resolvable links, the JSON record and the archive manifest.json carry the entries, and the RO-Crate's root dataset gets the DOI as its identifier, which is what an ingesting repository indexes on.

The patch cannot repoint the token, because a citation whose target could change under the reader would be worthless. A body naming artifact_id or version is refused with a 400 rather than half-applied, so a caller never reads a 200 as "the link now shows the other version". To cite another version, publish it for its own link.

Each patch is recorded on the store's event feed (GET /v1/events) as a credit event with the publication's id in value, beside publish and withdraw, so a service mirroring the page learns of a new DOI without polling.

Copying a chain into another store

A link resolves from the store its server serves, and a chain lives in the store its cells wrote to. When those are different machines, the chain is imported into the serving store first, ancestors before descendants, keeping each version's id and number so its lineage edges still resolve. strata artifact publish --to <url> does this for you, and a service doing it over HTTP does the same: upload each version's bytes, then its record:

PUT  /v1/artifacts/import/blobs/{content_sha256}     the bytes, checked against the digest; 201
POST /v1/artifacts/import                    {"id": ..., "version": ..., "provenance_hash": ...,
                                              "created_at": ..., "content_sha256": ...,
                                              "input_versions": ..., ...}

The record's content_sha256 names the bytes uploaded before it, and only the same tenant's upload counts: a digest is printed on every publication's page, so knowing one proves nothing. An upload nothing imports is dropped a day later. The import stamps the caller's tenant on the row, answers 409 for an id another tenant holds (at any version) or a version another computation holds unless ?remap=true is set, and is idempotent: repeating a finished import writes nothing and needs no new upload. The same route also takes a multipart body with the record as metadata and the bytes as data. The server copies data to disk as it arrives, but a client usually builds the whole body in memory, so large artifacts suit the staged route.

publish --to streams each artifact's bytes from a file to the upload route and sets remap. So a chain another tenant on the target already holds (or a version id a different computation took there) lands as a copy under a fresh id, <id>@import=<8 hex>, in the caller's tenant. Each copy keeps its provenance hash, and the CLI points every descendant's lineage edges at the ids its ancestors landed on, so the published page resolves every step. Publishing the same chain again writes nothing. The target refuses a blob larger than its STRATA_MAX_UPLOAD_BYTES with 413; raise it there to publish larger artifacts.

HTTP

Route	Auth	Purpose
POST /v1/artifacts/{id}/v/{n}/publish	yes (artifacts:publish)	Mint a link. The response carries token and url, the only time they are shown, and id. Idempotent: republishing returns the existing publication, with token and url null.
DELETE /v1/publications/{token}	yes (artifacts:publish)	Withdraw, by token or id.
PATCH /v1/publications/{token}	yes (artifacts:publish)	Set authors and external identifiers, by token or id. Cannot change what the token points at: artifact_id or version in the body is a 400.
GET /v1/publications	yes	List this tenant's live publications by id, without tokens (?include_revoked=true adds withdrawn ones).
PUT /v1/artifacts/import/blobs/{content_sha256}	yes (artifacts:write)	Upload a version's bytes ahead of its record.
POST /v1/artifacts/import	yes (artifacts:write)	Import a version, keeping its id and number.
GET /p/{token}	no	The page.
GET /p/{token}/data	no	The published bytes.
GET /p/{token}/archive.zip	no	The archived bundle as a zip, with a Content-Digest header.
GET /p/{token}/verify	no	Re-read and compare against the recorded digest. ?sha256= also says which bundle file (Arrow or Parquet) a digest names.
GET /p/{token}/embed	no	The card, for an <iframe>. Framable from any origin.
GET /oembed?url=…	no	oEmbed provider, so a pasted link unfurls.
GET /p/{token}/ro-crate	no	The chain as RO-Crate JSON-LD.
GET /p/{token}/badge.svg	no	A README pill reporting the chain size.
GET /v1/publications/{token}	no	The same record as JSON.

For a withdrawn token the page, the badge and GET /v1/publications/{token} still answer and say so; the record then carries only the token, title and the publish and withdraw times, no chain or source. Every route that serves content (/data, /archive.zip, /verify, /embed, /ro-crate and /oembed) answers 410 Gone.

The unauthenticated routes are exempt from the auth and tenant middleware by path, and only for GET. The token is the credential: it exists only because someone with authority over that artifact minted it for one version. Minting, withdrawing, editing credits and listing all stay behind the gate.
